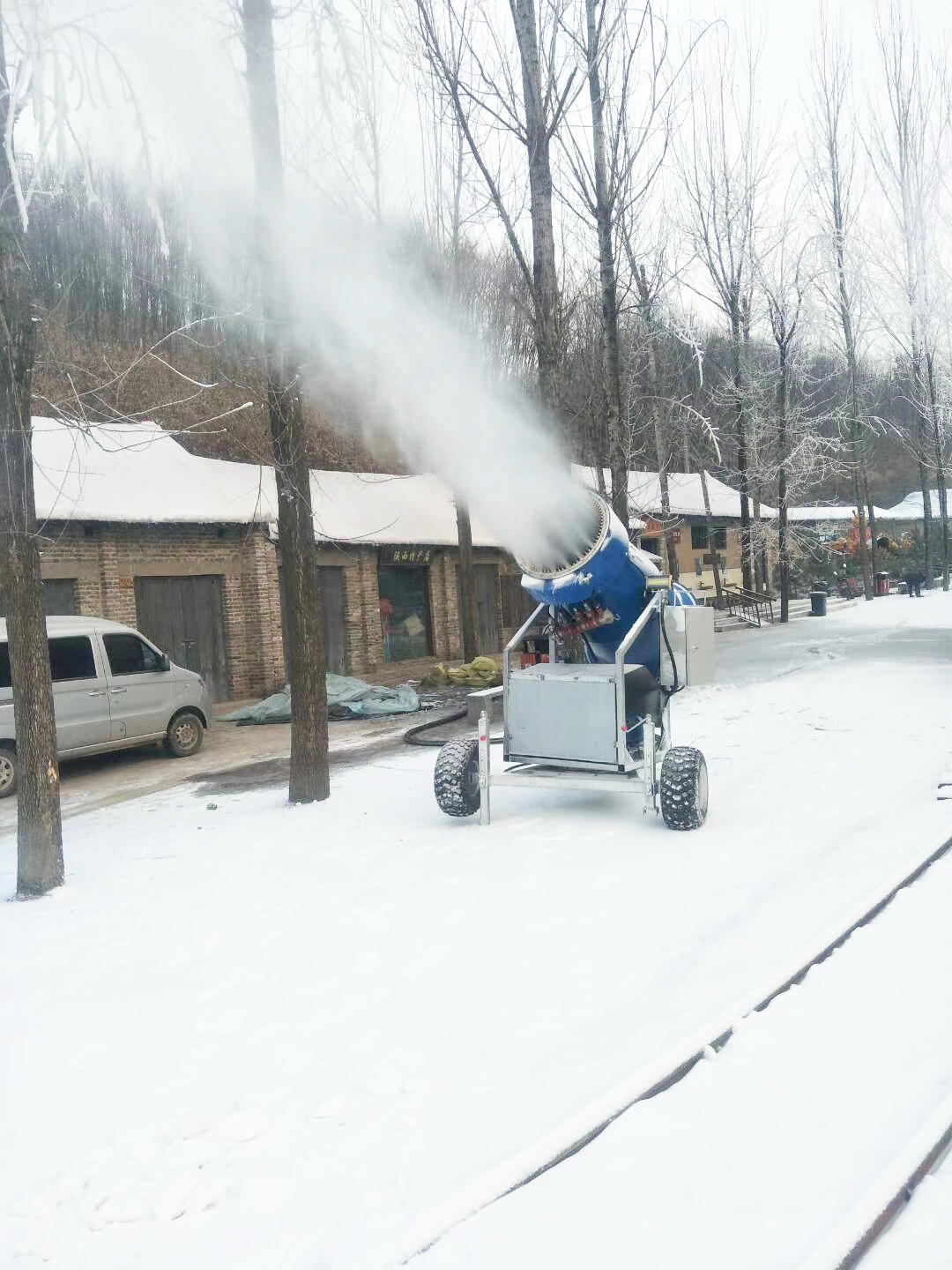

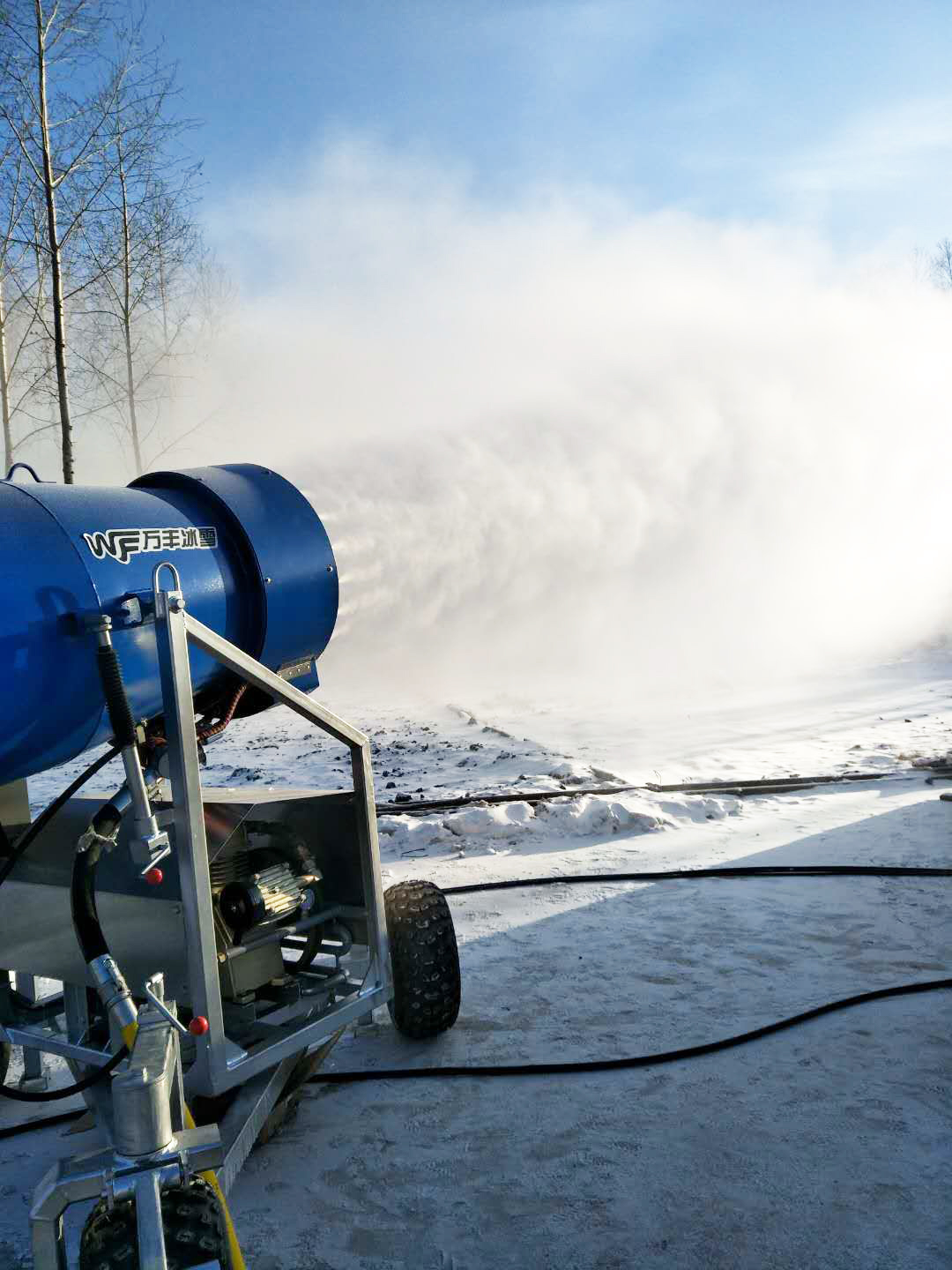

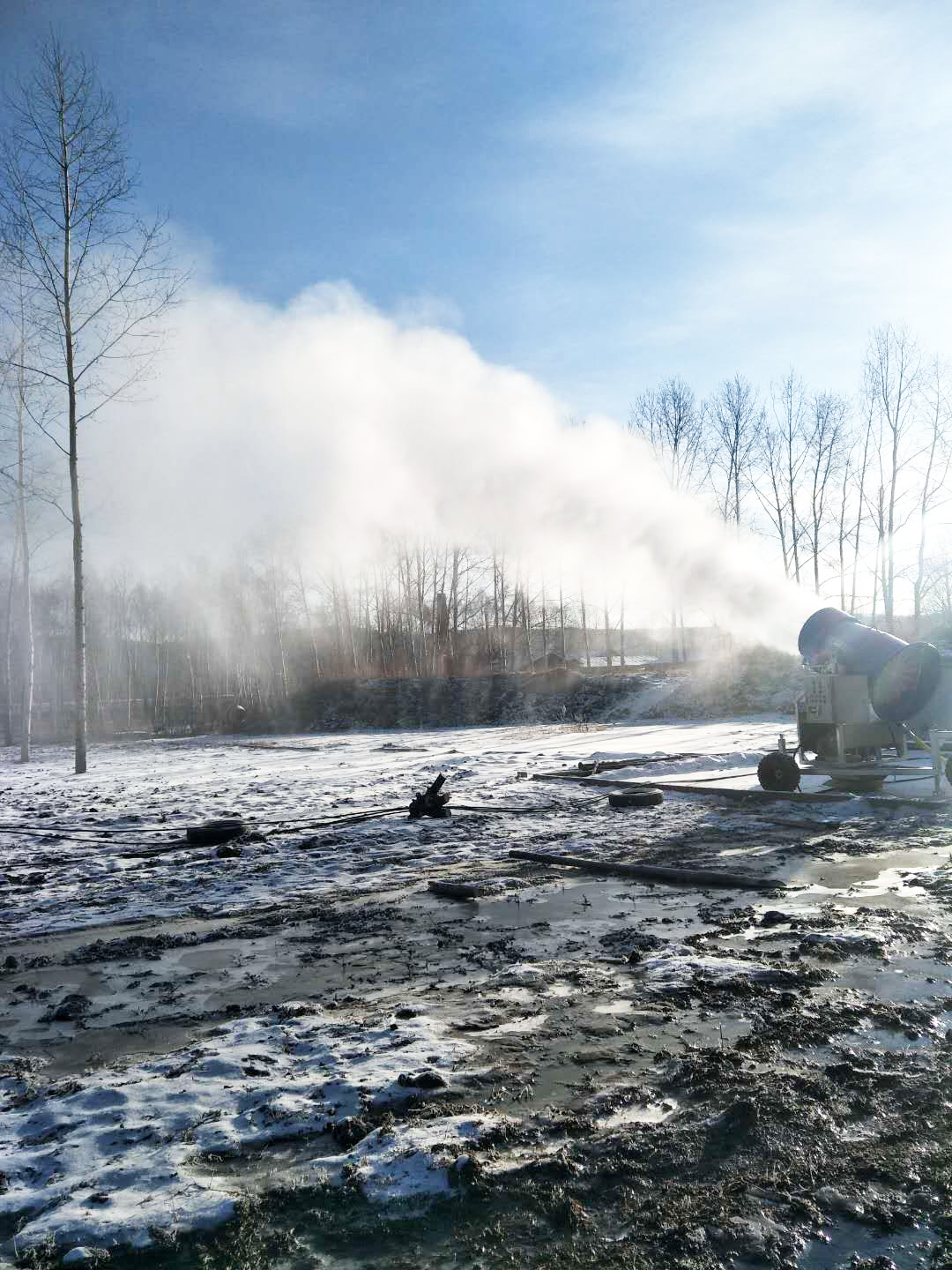

WFBX-236 snowmaking machine

Technical parameters of snowmaking machine

Overall dimensions: length 2600mm, width 2100mm, height 2200mm

Fan motor: 15kw

Air compressor: 7.5kw

Nozzle heating: 2×1500w

Snow nozzle: 216 pieces

Number of nozzle rows: 3 rows

Nucleator nozzles: 20 pieces

Structure: 3 tires and rotatable bracket

Water filter: 100 mesh, stainless steel, replaceable and washable

Water inlet: 2-inch stainless steel quick-change connector

Manual control angle: 0°-360° rotation

Automatic snow spray angle: 0°-45° rotary swing

Water pressure: 8-40 kg

Water output: 3.456-35.81 cubic meters per hour

Snowmaking volume: 30-100 cubic meters

Range: 120 meters in diameter
